Connected low temperature oil boilers

Connected low-temperature oil-fired boiler chimney and flue

Optitherm

Eco-Design low temperature oil boiler
24 and 32 kW
Heating only or Heating and DHW
Optitherm without Duotherm :
Easy twinning with a wood firing boiler, a heat pump or a solar powered system
Optitherm with Duotherm  :
Ideal for under floor heating and radiators installation

  • Etas > 86 %

Table of Contents




Class 7 control (RC7)


RC7 is a class VII control system, which acts simultaneously on the temperature of the heating circuit:
- by modulating it according to the external climatic conditions ;
- by adapting and correcting it according to the room requirements.

The temperature sensors are easy to install and transmit information either by wire or by radio. The device is controlled by your smartphone using the MyPerge application, available on Google Play (Android) or Apple Store (iOS). The connection is made locally via Bluetooth or internet or remotely via internet. Data exchanges are encrypted for greater security. You can control up to 3 heating circuits or 2 heating circuits + 1 domestic hot water circuit.

You have 4 operating modes:

- Winter (heating + DHW)
- Summer (DHW only)
- Absence (heating only at a programmed frost-free temperature)
- Standby (no heating or DHW)



Bio-fuel F30 Compatible




PERGE has always invested in innovative technologies, particularly in clean combustion techniques.

This pragmatic approach is based on a process of permanent progress, even if it is minor, to improve the daily life of all. This is why PERGE Optitherm Connect+ low temperature oil boilers are compatible with Bio-fuel F30.





Energy efficiency

Optitherm Connect+ with control: seasonal energy efficiency class A

Etiquette ErP Classe A ErP label Class AA With its climate control with room correction (class 7), the Optitherm Connect+ 32kW boiler achieves a seasonal energy efficiency of class A, at the same level as a very good condensing boiler.Thanks to their low NOx emissions, Optitherm boilers are certified Eco-Conception 2018.

Economical and easy to install


Thanks to their original hydraulic design, PERGE Optitherm oil boilers can be installed without a mixing valve, whatever the configuration of the installation

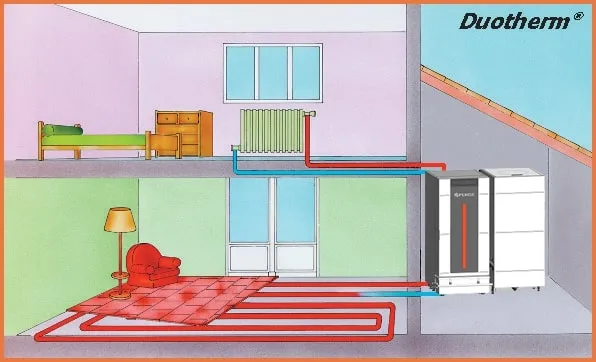

PERGE Optitherm Connect+ with Duotherm: PERGE Optitherm Connect+ oil-fired boilers can easily supply two heating circuits with different temperatures (e.g. underfloor heating + radiator circuit) directly from the boiler and without additional hydraulic accessories.
This simplifies the hydraulic installation and reduces installation times.













Perge: Low temperature oil boiler technology

Robust and simple

StopthermThe dew point is avoided thanks to the Stoptherm device, without the installation of a mixing valve. This means that the boiler is operated at the required temperature without additional hydraulic accessories. Thanks to the factory-fitted class 7 control, you will achieve top performance in reducing your consumption.
A 90 or 150 litre 316L stainless steel anti-legionnaires' disease tank is fitted to the DHW models.





  Garantie 10 ansExchanger body warranty: 10 years. The warranty on the heat exchanger body is extended from 3 to 10 years if you take out an annual maintenance contract with a professional, from the moment the boiler is commissioned and without interruption for 10 years.



Models and accessories

Equipment present on all models:

- Heating body allowing, without mixing valve, an operation without temperature limitation of the returns without risk of dew point.
- Two heating circuits with identical temperature, ideal for coupling with another boiler or two heating circuits with different temperatures, ideal for underfloor heating and radiators (-D).
- Control panel
- RC7: Class 7 control
- Low NOx oil burner, jacket and reinforced insulation
- Reinforced insulation jacket

Domestic hot water:
C: Heating only
B : Heating and domestic hot water production by 90 litre (B90) or 150 litre (B150) stainless steel tank.

Factory fitted equipment depending on the model:
V: Airtight flue for horizontal, vertical or separate flue connection.
D: Duotherm device for direct supply of 2 heating circuits at different temperatures, heating circulator circuit n°1 fitted and wired.



Bio-fuel F30 :

Chimney :

Designation kW DHW RC7 Etas
Optitherm 24 C-F30DR Connect 24 / 86,3
Optitherm 32 C-F30DR Connect 32 / 86,9
Optitherm 24 B90-F30DR Connect 24 90 litres stainless steel 86,2
Optitherm 24 B150-F30DR Connect 24 150 litres stainless steel 86,2
Optitherm 32 B150-F30DR Connect 32 150 litres stainless steel 86,9



Suction cup :

Designation kW DHW RC7 Etas
Optitherm 24 C-F30VDR Connect 24 / 86,3
Optitherm 32 C-F30VDR Connect 32 / 86,9
Optitherm 24 B90-F30VDR Connect 24 90 litres stainless steel 86,2
Optitherm 24 B150-F30VDR Connect 24 150 litres stainless steel 86,2
Optitherm 32 B150-F30VDR Connect 32 150 litres stainless steel 86,9

Standard Fuel Oil :

Chimney

Designation kW DHW RC7 Etas
Optitherm 24 C-FDR Connect 24 / 86,3
Optitherm 32 C-FDR Connect 32 / 86,9
Optitherm 24 B90-FDR Connect 24 90 litres stainless steel 86,2
Optitherm 24 B150-FDR Connect 24 150 litres stainless steel 86,2
Optitherm 32 B150-FDR Connect 32 150 litres stainless steel 86,9



Suction cup :

Designation kW DHW RC7 Etas
Optitherm 24 C-FVDR Connect 24 / 86,3
Optitherm 32 C-FVDR Connect 32 / 86,9
Optitherm 24 B90-FVDR Connect 24 90 litres stainless steel 86,2
Optitherm 24 B150-FVDR Connect 24 150 litres stainless steel 86,2
Optitherm 32 B150-FVDR Connect 32 150 litres stainless steel 86,9











Manufacturer requirements

  • Chimney installations and Ventilation should conform to requirements of the Building Regulations and any approved local laws and all subsequent standards referred to.
