Low-temperature oil-fired boiler chimney and flue

Low-temperature oil-fired boiler chimney and flue

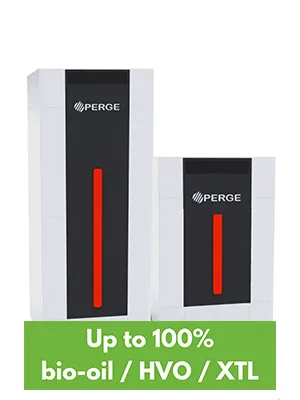

Optitherm

Eco-Design low temperature oil boiler
24 and 32 kW
Heating only or Heating and DHW
Optitherm without Duotherm :
Easy twinning with a wood firing boiler, a heat pump or a solar powered system
Optitherm with Duotherm  :
Ideal for under floor heating and radiators installation

  • Etas > 86 %

Table of Contents



Bio-fuel F30 Compatible


PERGE has always invested in innovative technologies, especially in clean combustion techniques.

This pragmatic approach is based on a process of permanent progress, even if it is only minor, to improve the daily life of everyone. This is why PERGE Optitherm low temperature oil boilers are compatible with Bio-fuel F30.





Suitable for all needs

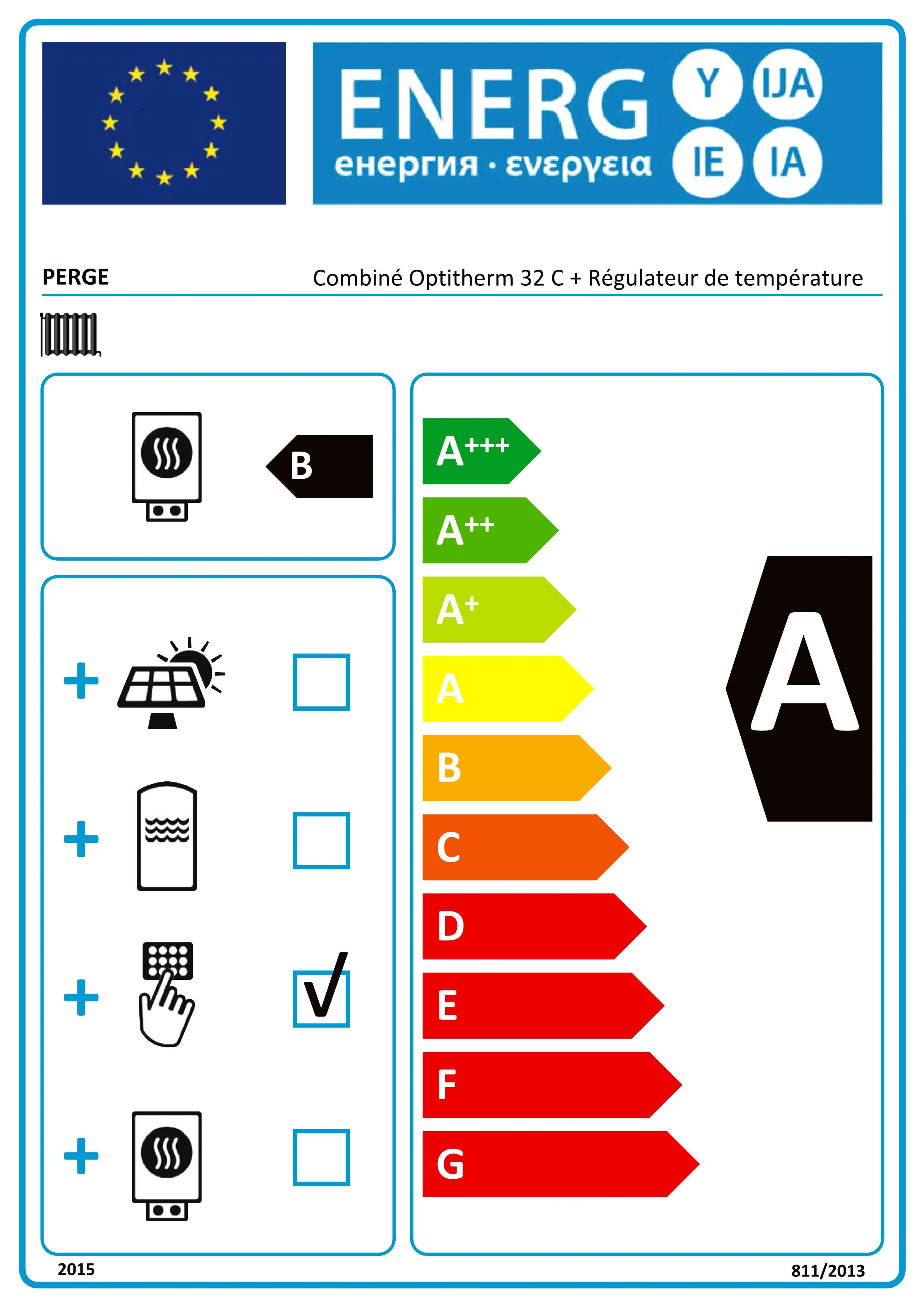

Optitherm 32 with controller : class A seasonnal space heating efficiency

Etiquette ErP Classe AWith its climate control with room correction, the Optitherm 32 R boiler achieves a seasonal energy efficiency of class A, on a par with a very good condensing boiler.

Thanks to their low NOx emissions, Optitherm boilers are already certified Eco-Conception 2018.



Economical and easy to install


Thanks to their original hydraulic design, PERGE Optitherm oil boilers can be installed without a mixing valve, whatever the configuration of the installation



Twinning of energies ? Under floor heating and radiators ?
Optitherm : the simple and easy answer.

Couplage MC OptiPERGE Optitherm: With ease and without the use of electronics, PERGE Optitherm oil-fired boilers can supply two heating circuits directly from the boiler and without additional hydraulic accessories.
It is an ideal solution for coupling with :
- a wood-fired boiler,
- a heat pump,
- solar collectors



Adjacent picture : Twinning of a PERGE optitherm oil boiler and a PERGE MC wood firing boiler





DuothermPERGE Optitherm with Duotherm: The PERGE Optitherm I series oil-fired boilers can easily supply two heating circuits with different temperatures (ex. underfloor heating + radiator circuit) directly from the boiler and without additional hydraulic accessories.
This simplifies the hydraulic installation and reduces installation times.



Perge: Low temperature oil boiler technology

Simple and reliable

StopthermThe dew point is avoided thanks to the Stoptherm device, without the installation of a mixing valve. This means that the boiler operates at the temperature required without additional hydraulic accessories. In combination with the RTE3 outdoor temperature control, you will achieve top performance in reducing your consumption.
A 90 or 150 litre 316L stainless steel anti-legionella storage tank is available for the DHW models.





  Garantie 10 ansBoiler body warranty : 10 years. Exchanger body warranty: 10 years. The warranty on the heat exchanger body is extended from 3 to 10 years if you take out an annual maintenance contract with a professional, from the moment the boiler is commissioned and without interruption for 10 years.
- Have a yearly maintenance of the boiler by a professionnal from the first year and all along the warranty period.



Models and accessories


Equipment present on all models:

- Heating body allowing, without mixing valve, an operation without temperature limitation of the returns without risk of dew point.
- Two heating circuits with identical temperature, ideal for twinning with another boiler or two heating circuits with different temperatures, ideal for underfloor heating and radiators (-D).
- Control panel
- Oil burner
- Reinforced insulation jacket

Domestic hot water:
C: Heating only
B: Heating and domestic hot water production by 90 litre (B90) or 150 litre (B150) stainless steel tank.

Factory fitted equipment depending on the model:
D: Duotherm device for direct supply of 2 heating circuits at different temperatures, heating circulator circuit n°1 fitted and wired.



Bio-fuel F30 :

Chimney :



Designation kW DHW C1 fitted RTE3 Etas
Optitherm 24 C-F30 24 / ° ° 86,3
Optitherm 24 C-F30D 24 / ° 86,3
Optitherm 32 C-F30 32 / ° ° 86,9
Optitherm 32 C-F30D 32 / ° 86,9
Optitherm 24 B90-F30 24 90 litres stainless steel ° ° 86,2
Optitherm 24 B90-F30D 24 90 litres stainless steel ° 86,2
Optitherm 24 B150-F 24 150 litres stainless steel ° ° 86,2
Optitherm 24 B150-FD 24 150 litres stainless steel ° 86,2
Optitherm 32 B150-F 32 150 litres stainless steel ° ° 86,9
Optitherm 32 B150-FD 32 150 litresstainless steel ° 86,9



Flue :

Designation kW DHW C1 fitted RTE3 Etas
Optitherm 24 C-F30V 24 / ° ° 86,3
Optitherm 24 C-F30VD 24 / ° 86,3
Optitherm 32 C-F30V 32 / ° ° 86,9
Optitherm 32 C-F30VD 32 / ° 86,9
Optitherm 24 B90-F30V 24 90 litres stainless steel ° ° 86,2
Optitherm 24 B90-F30VD 24 90 litres stainless steel ° 86,2
Optitherm 24 B150-F30V 24 150 litres stainless steel ° ° 86,2
Optitherm 24 B150-F30VD 24 150 litres stainless steel ° 86,2
Optitherm 32 B150-F30V 32 150 litres stainless steel ° ° 86,9
Optitherm 32 B150-F30VD 32 150 litres stainless steel ° 86,9



Standard fuel oil :

Chimney :



Designation kW DHW C1 fitted RTE3 Etas
Optitherm 24 C-F 24 / ° ° 86,3
Optitherm 24 C-FD 24 / ° 86,3
Optitherm 32 C-F 32 / ° ° 86,9
Optitherm 32 C-FD 32 / ° 86,9
Optitherm 24 B90-F 24 90 litres stainless steel ° ° 86,2
Optitherm 24 B90-FD 24 90 litres stainless steel ° 86,2
Optitherm 24 B150-F 24 150 litres stainless steel ° ° 86,2
Optitherm 24 B150-FD 24 150 litres stainless steel ° 86,2
Optitherm 32 B150 32 150 litres stainless steel ° ° 86,9
Optitherm 32 B150-D 32 150 litres stainless steel ° 86,9



Flue





Designation kW DHW C1 fitted RTE3 Etas
Optitherm 24 C-FV 24 / ° ° 86,3
Optitherm 24 C-FVD 24 / ° 86,3
Optitherm 32 C-FV 32 / ° ° 86,9
Optitherm 32 C-FVD 32 / ° 86,9
Optitherm 24 B90-FV 24 90 litres stainless steel ° ° 86,2
Optitherm 24 B90-FVD 24 90 litres stainless steel ° 86,2
Optitherm 24 B150-FV 24 150 litres stainless steel ° ° 86,2
Optitherm 24 B150-FVD 24 150 litres stainless steel ° 86,2
Optitherm 32 B150-FV 32 150 litres stainless steel ° ° 86,9
Optitherm 32 B150-FVD 32 150 litres stainless steel ° 86,9

















Price examples

Optitherm 24 B90-F30

Optitherm 24 B90-F30

Low temperature biofuel boiler High Energy Performance class B
ErP 2015 (efficiency) and 2018 (low NOx) certified
Power 24 kW.
Pre-adjusted biofuel burner, factory fitted
Production of domestic hot water by 90 litre stainless steel DHW tank.
Direct connection from the boiler without additional accessories
3 year boiler body warranty with possible extension to 10 years
Price excluding tax

4.990,00 € HT
Optitherm 24 C-F30

Optitherm 24 C-F30

Low temperature biofuel boiler High Energy Performance class B
ErP 2015 (efficiency) and 2018 (low NOx) certified
Power 24 kW.
Pre-adjusted biofuel burner, factory fitted
Direct connection from the boiler without additional accessories
3 year boiler body warranty with possible extension to 10 years
Price excluding tax
3.490,00 € HT

Why choose oil ?

Oil is easy to store and available everywhere. Moreover, it is a very powerful fuel (10 kWh per liter)

Oil has greatly changed in order to reduce its environmental impact. The oil condensing boiler technology allows to reduce energy consumption significantly (Up to 30% compared to a traditional boiler). Its level of sulphur has been divided by 6 in the last 40 years.

Oil boilers may be twinned with renewable fuels such as biomass or solar powered system.

Manufacturer requirements

  • Chimney installations and Ventilation should conform to requirements of the Building Regulations and any approved local laws and all subsequent standards referred to.
